| Basic parameters of the product |
| Product number in the system | 628022 |
| Supplier's number | MRMA123 |
| Barcode | 4260664876847 |
| Reference number of the product | 11-01516-6 |

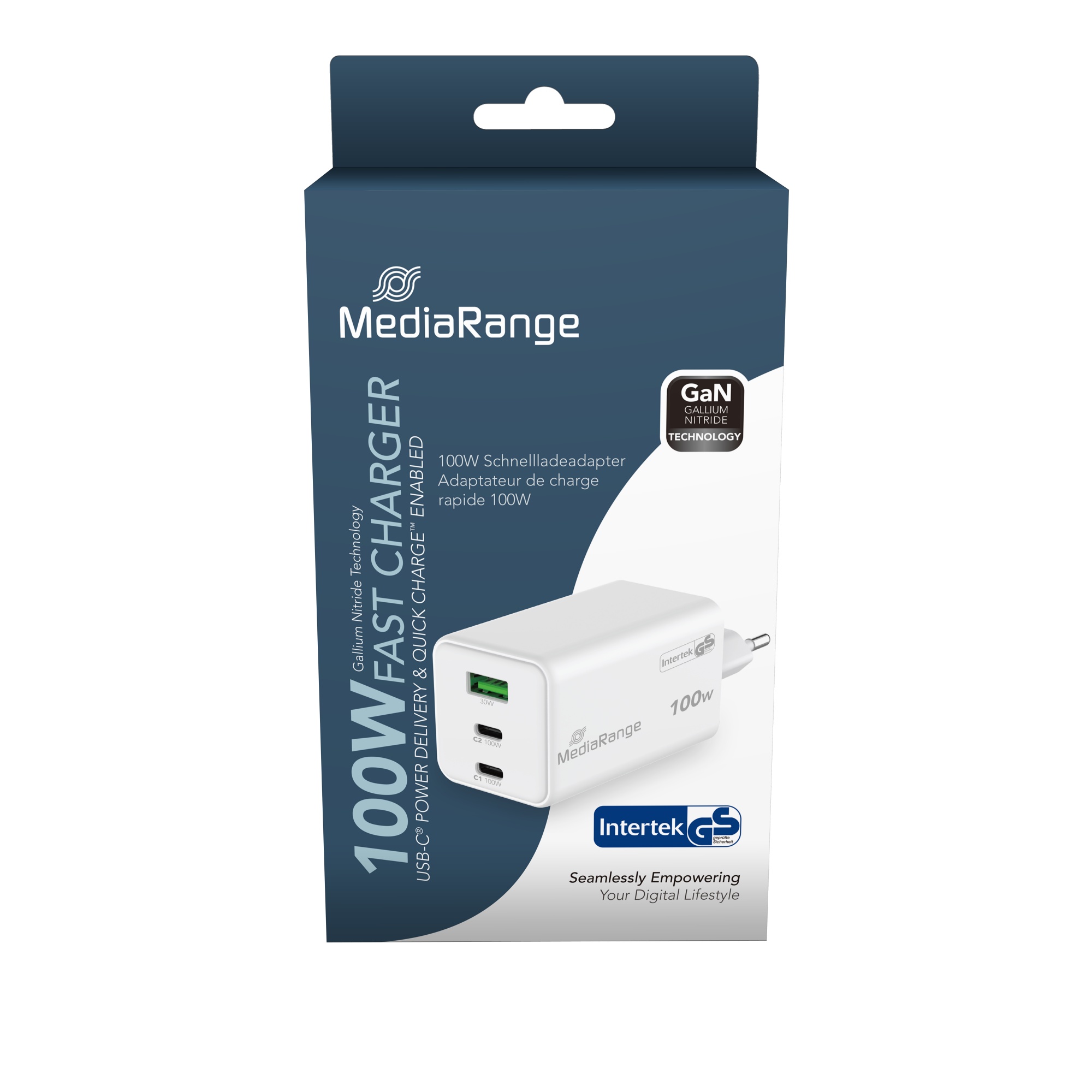

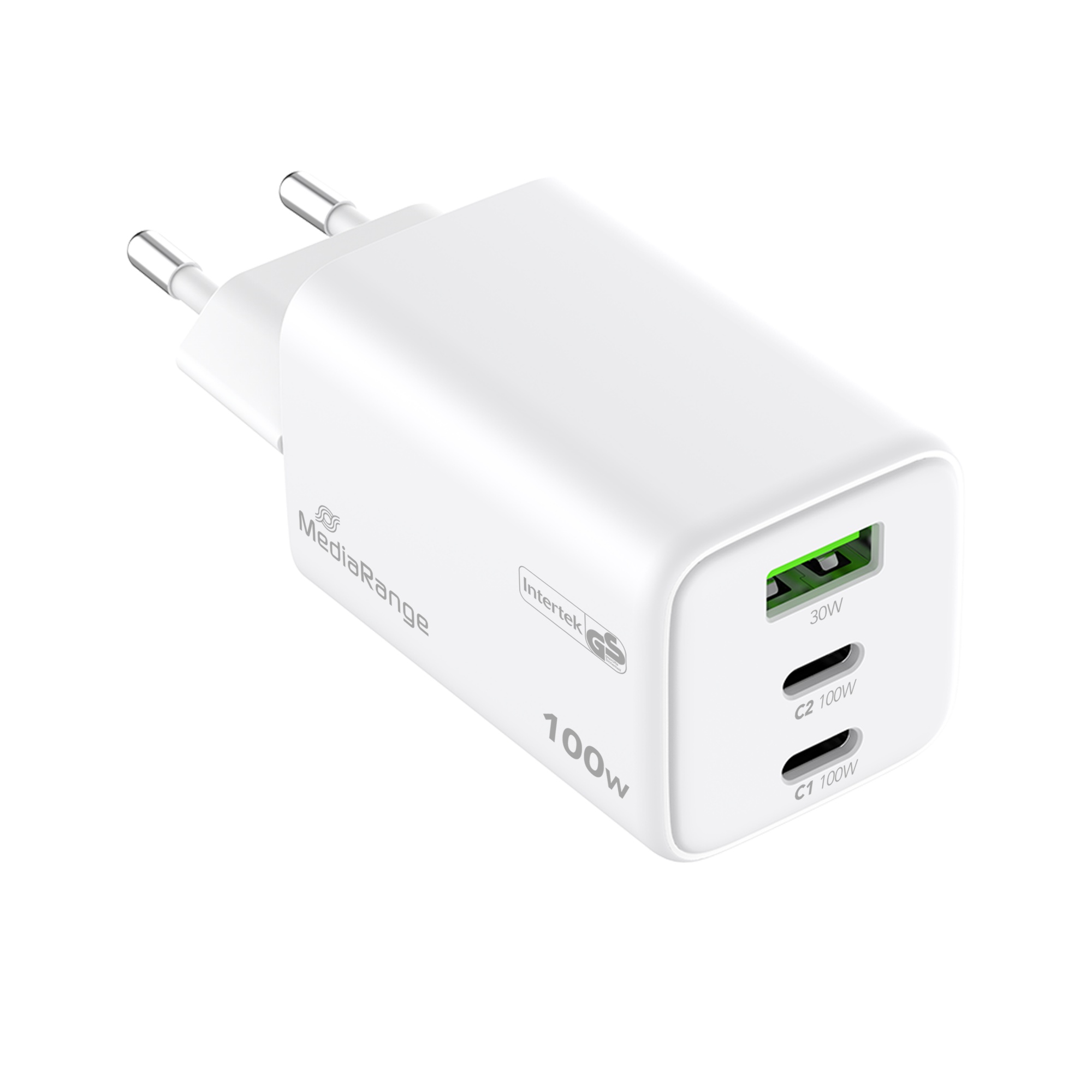

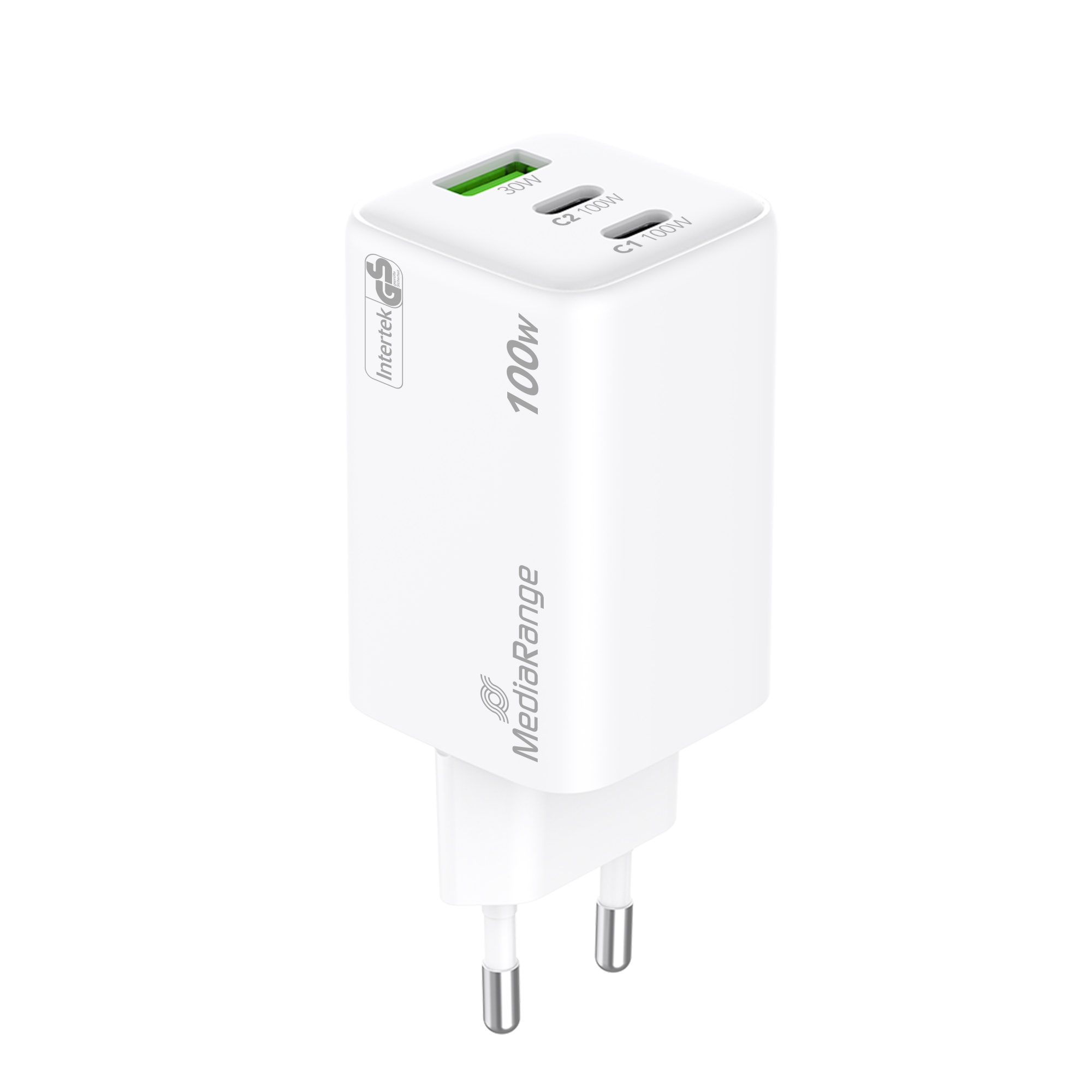

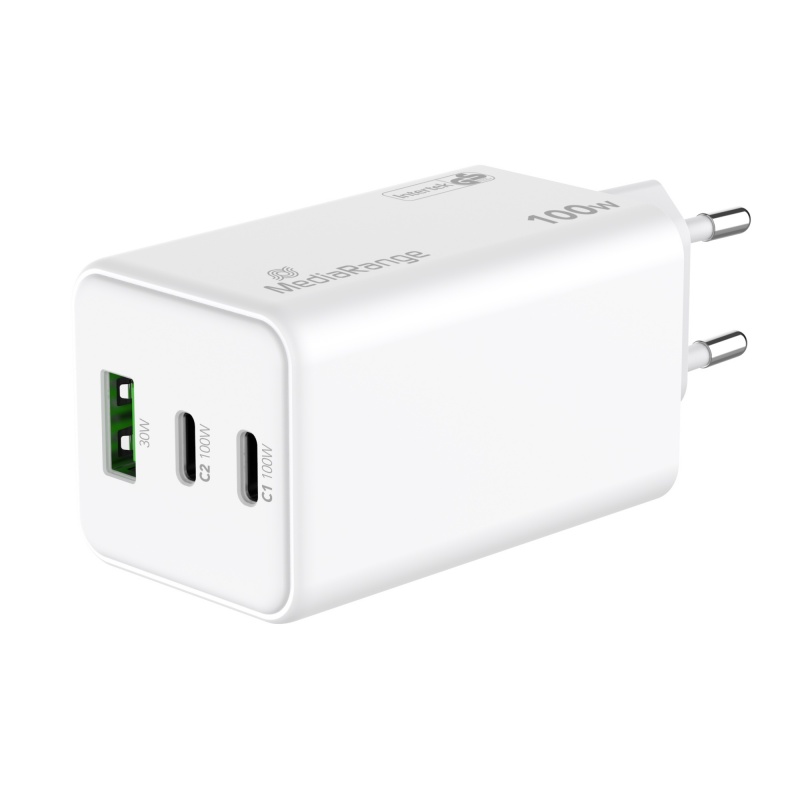

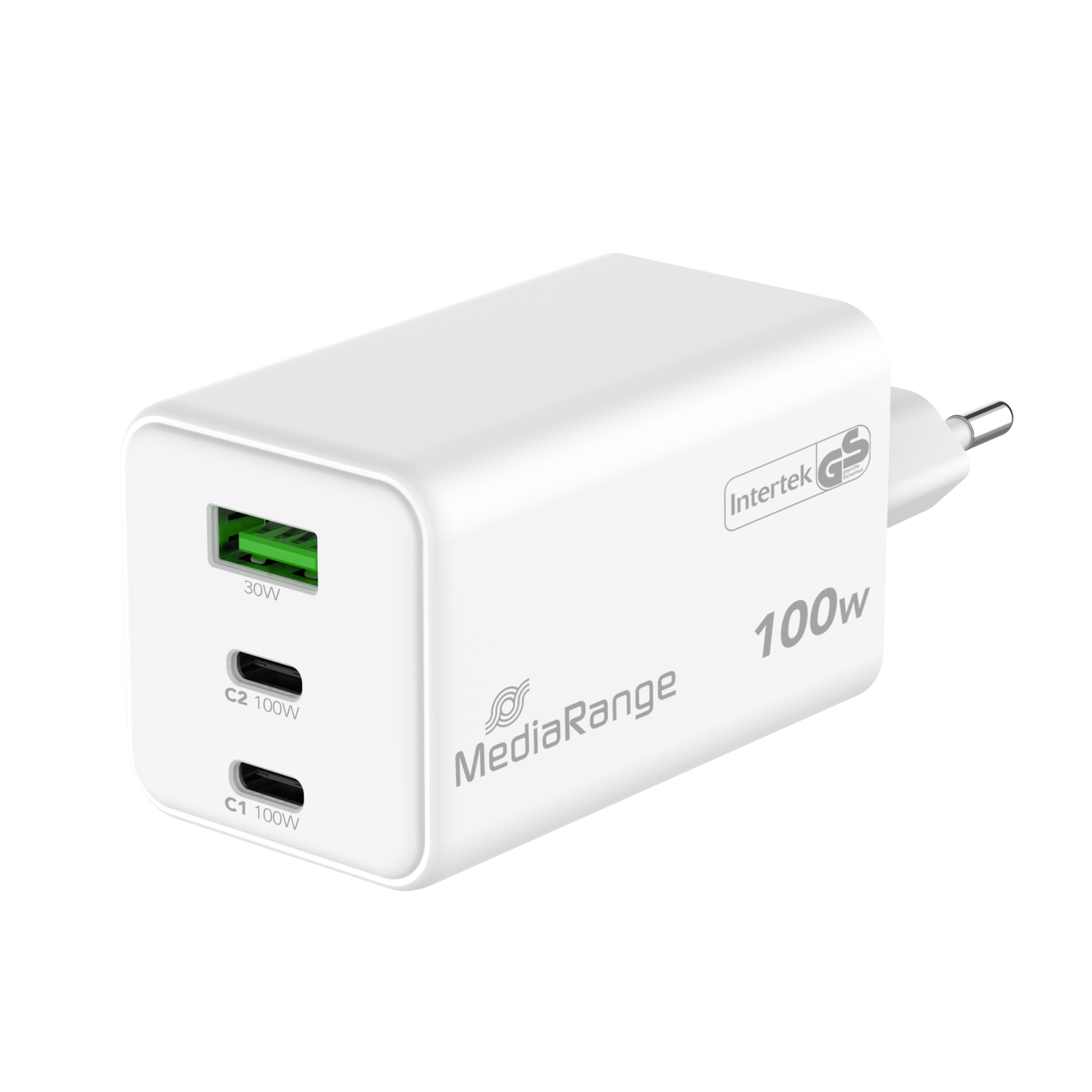

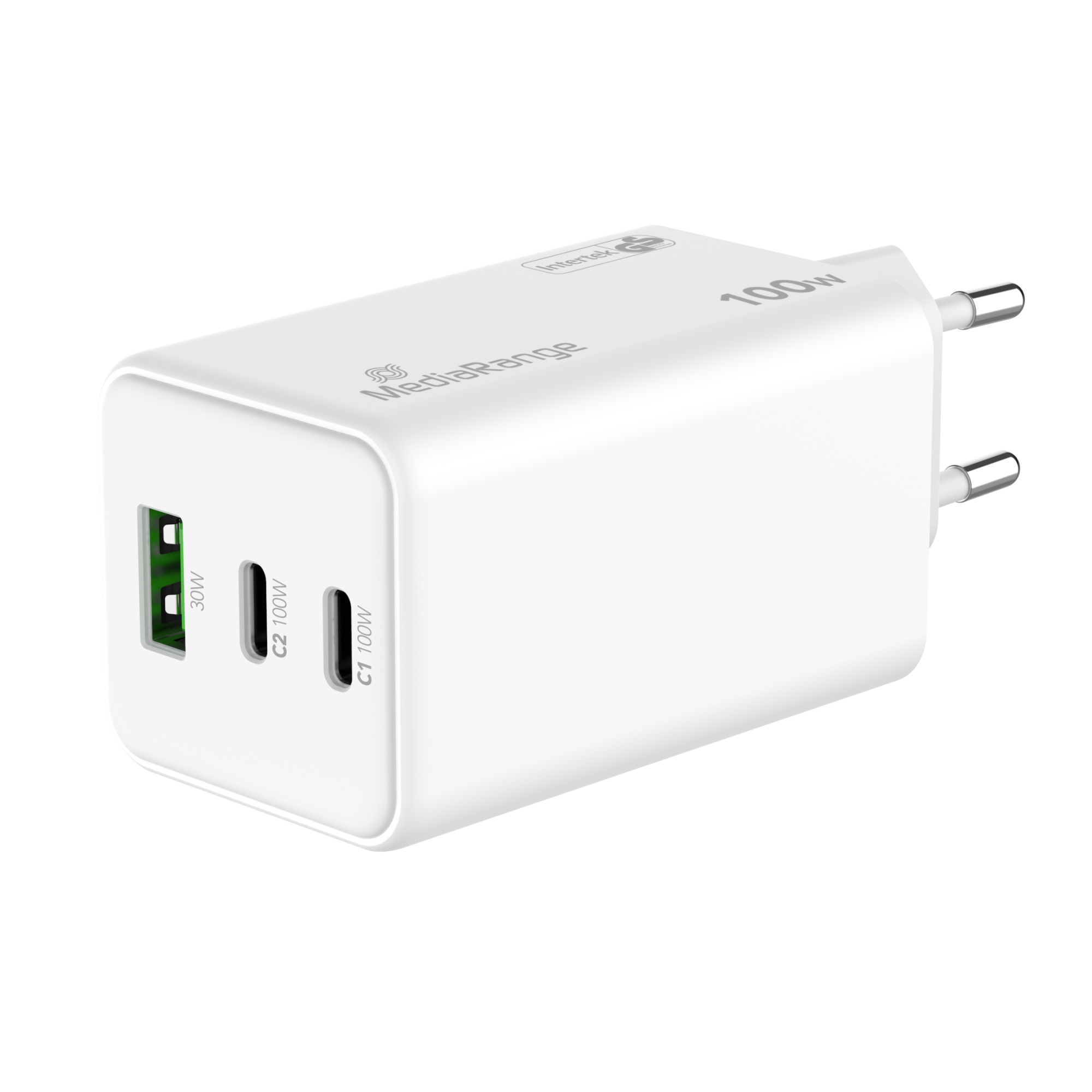

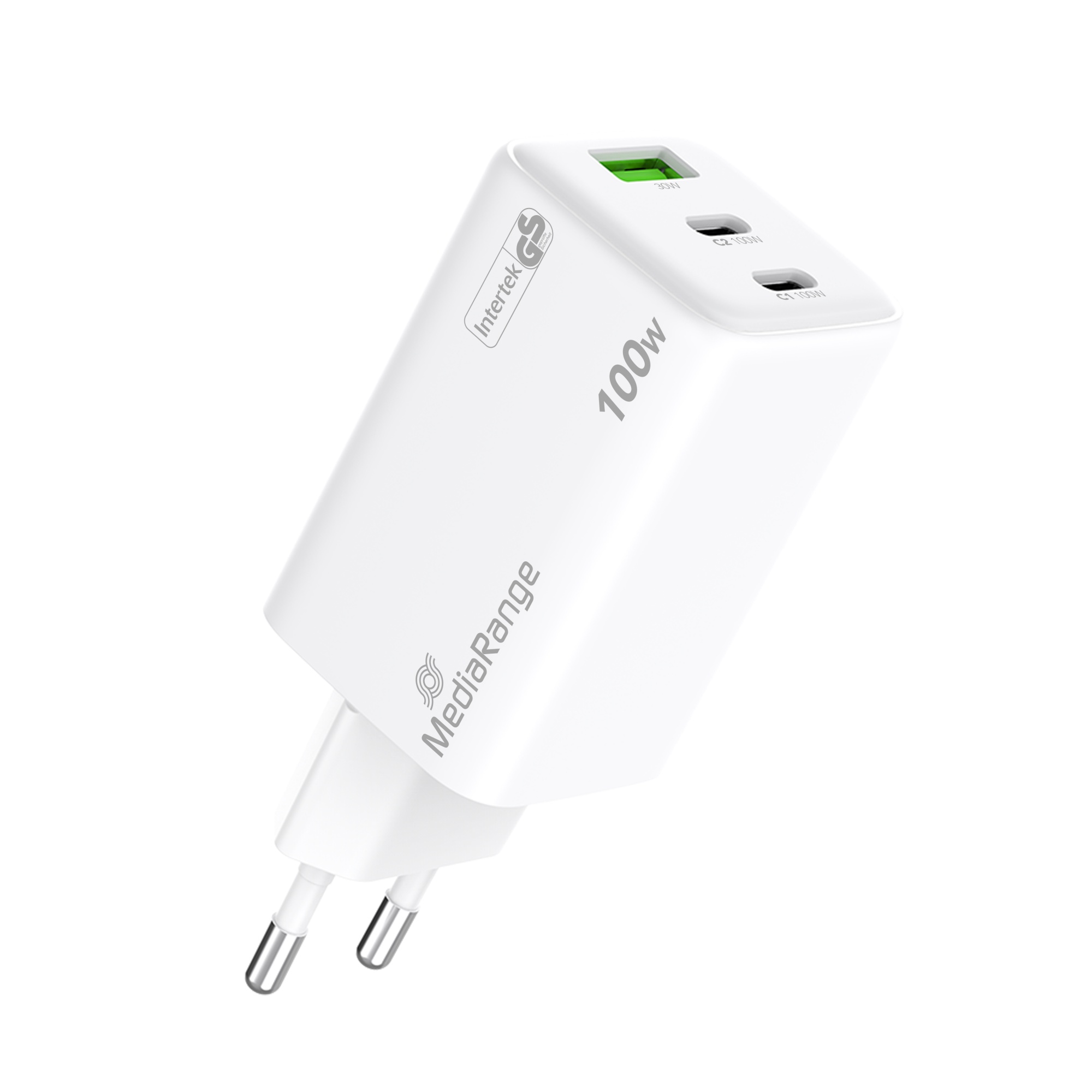

| Product name | Adapter MEDIARANGE 100W, fast charging, 2xUSB-C + 1xUSB-A, white |
| Product description | - 100W GaN fast charging adapter with Type-C EU-Plug
- Supports USB Type-C Power Delivery 3.0, Quick Charge 3.0 and PPS (Programmable Power Supply)
- Intertek GS-Approved
- State-of-the-art GaN technology for a more compact design and lower heat generation during charging
- Suitable for simultaneous charging of several terminals
- Shock and fire resistant V0 polycarbonate housing
- Intelligent chipsets for permanent monitoring of the charging process
- Overvoltage protection, overcharge protection, short-circuit protection and overheating protection
- Input voltage / Input frequency / Input current: AC 100-240V~50/60Hz; 1.5A (max.)
- Output voltage / Output current / Output power total:
- USB-C1 (Power Delivery 3.0): DC 5.0V⎓3.0A (15.0W) or DC 9.0V⎓3.0A (27.0W) or DC 12.0V⎓3.0A (36.0W) or DC 15.0V⎓3.0A (45.0W) or DC 20.0V⎓5.0A (100W max.)
- PPS (Programmable Power Supply): DC 3.3-21.0V⎓5.0A (100W max.)
- USB-C2 (Power Delivery 3.0): DC 5.0V⎓3.0A (15.0W) or DC 9.0V⎓3.0A (27.0W) or DC 12.0V⎓3.0A (36.0W) or DC 15.0V⎓3.0A (45.0W) or DC 20.0V⎓5.0A (100W max.)
- PPS (Programmable Power Supply): DC 3.3-21.0V⎓5.0A (100W max.)
- USB-A (Quick Charge 3.0): DC 5.0V⎓3.0A (15.0W) or DC 5.0V⎓4.5A (22.5W) or DC 4.5V⎓5.0A (22.5W) or DC 9.0V⎓3.0A (27.0W) or DC 12.0V⎓2.5A (30.0W) or DC 15.0V⎓2.0A (30.0W) or DC 20.0V⎓1.5A (30.0W max.)
- Combined output power:
- USB-C1 + USB-C2: 65.0W + 30.0W (95.0W max.)
- USB-C1 + USB-A: 65.0W + 30.0W (95.0W max.)
- USB-C2 + USB-A: 65.0W + 30.0W (95.0W max.)
- USB-C1 + USB-C2 + USB-A: 60.0W + 20.0W + 18.0W (98.0W max.)
- Average efficiency during operation: 79.77%
- Efficiency at low load (10%): 79.77%
- Power consumption at zero load: 0.202W
- Dimensions: Approx. 105.7 x 40 x 41.5mm
- Weight: Approx. 202.3g
|
| Category | Connectors and adapters |
|
Basic product parameters
|
| Brand |
MEDIARANGE |
|
Colour
|
| Colour |
white |
|
Feature
|
| Product |
adapter |
| Type |
|
| Kind |
100W |
| Offer from |
|
|
Certifications
|
| Hit |
Hit |
| New product |
New |
|
Procurement vocabulary
|
| CPV |
30237132-3 Interfejs USB |
| Logistic units |
|
10
|
Availability: 5 dni
